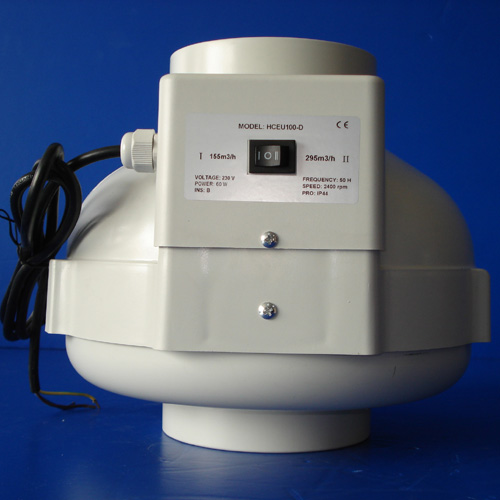

  • £¨Plastic£©Two Speed Inline Duct Fan---Model¡¾HCEU-DW¡¿
  •  Two speed is available by regulating the button on the fan.

    Typical sizes available: Ø100; Ø125; Ø150; Ø160; Ø200; Ø250; Ø305,Ø315

    Colour available:  Black, White

    It is used to transmit and strengthen the air flow inside a network of ventilation ducts.

    The Plastic Inline Duct Fan is equipped with ball bearing and visible propeller with a protective grate. The installations can be mounted horizontally and vertically.

    The propeller blades are directed backwards, ensuring higher pressure and work effciency.

    The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.

    Accessories: It is possible to connect a variable speed controller, Providing the customer with variable airflow setting.

    Specific technical parameter:

    Model
    Voltage
    Frequency
    Power
    Rotate
    Air Flow
    Pressure
    (HCEU-DW)
    (V )
    (HZ)
    (W)
    (R/Min)
    (M3/H)
    (Pa)
    Φ100
    110/230
    50/60
    80
    2742
    155 / 295
    465
    Φ125
    110/230
    50/60
    86
    2600
    215 / 385
    435
    Φ150
    110/230
    50/60
    131
    2723
    360 / 590
    523
    Φ160
    110/230
    50/60
    129
    2735
    430 / 660
    503
    Φ200
    110/230
    50/60
    175
    2696
    560 / 930
    743
    Φ250
    110/230
    50/60
    188
    2490
    820 / 1100
    555
    Φ305
    110/230
    50/60
    293
    2500
    1560 / 1800
    873
    Φ315
    110/230
    50/60
    291
    2535
    1620 / 1850
    884
