Applicantion

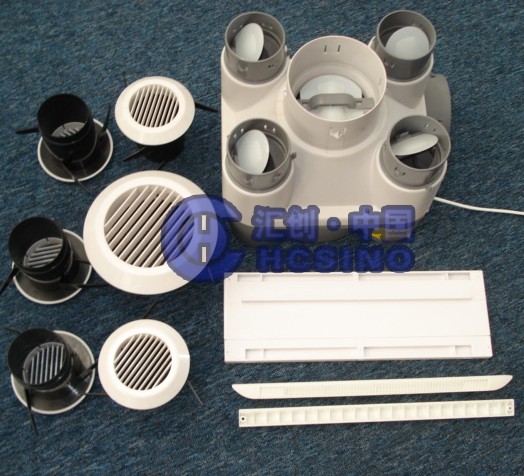

Fresh Air System is multi-point continuous mechanicai extract ventilation with air pressure self-balancing function.It is designed for the simultaneous ventilation of separate areas in the home or as a multi-point extraction system for a wide range of light commercial applications such as office,bank ace and hospital etc.
The unit is located in the false ceiling of selected place in home the installation place is nomal bathroom.kitchen and utility room with flexible ducts taken to the separate areas to remove odors.chemicals conta minants of water vapor in the air.The separate area is refilled by outdoor fresh air taken in through grill installed on the window frame.
Features
1) Whole house air pressure self-regulation system,one covers all rooms
2) Air pressure self-regulation design.no need for air pressure commissioning after installation
3) High ESP external static pressure, low noise motor to provide quiet continuous operation
4) Air flow volume designed to well fit home
5) Flexible mounting mode fits with S input spigots allowing quick connection to ducts
6) ABS plastic housing has high impact strength in comparlison with PP
7) 2fan speed
Specification
Model |
Power Supply (ACV/HZ) |
Rated Power (w) |
Air Flow (CNH) Speed:L-H |
Noise (DBA) Speed:L-H |
Weight (kg) |
External Dimension (mm) |
JW-U300 |
220/50 |
130 |
180/300 |
32/39 |
3 |
320x280x290 |
Envionment
Storage&Transportation 0-35
Operation -15-50 OC
Mounting Mode
Ceiling Suspension
