  • Insulated Aluminum Flexible duct
  • Insulated & Non-insulated Aluminum Flexible Duct & Silent Insulated Duct & PVC Composite Duct etc

     Made of Aluminum foil + pet + steel wire OR  flexible duct+insulated sponge+aluminum foil. (Silent insulated duct Punched many small hole, can absorb most of sound from airstream)

    We are the biggest manufacturer in China. Our price is lowest , the quality is perfect , and the delivery will be promptly

    ALUMINUM NON-INSULATED DUCT    ( MODEL: ALU-NOD )

    Non-insulated aluminium flexible ducts are specifically produced for low and medium pressure heating, cooling, ventilation, exhaust and air conditioning systems.

    Airtight aluminium flexible ducts are produced from multi layer aluminium strengthened with high tension hard steel spring wire. It has high elasticity and flexibility.

    It can be easily fitted to circular, oval or rectangular connectors. In case of fire no toxic or poisonous gases are released

    PROPERTIES VALUE
    Diameter Range 50-750mm (2"-30")
    Temperature Range -30 ~ +250 ºC
    Velocity Of Air Flow (Max.) 30 m/s
    Working Pressure 2500 Pa
    Bending Radius 0.54*D
    Standard Length 10M, 5M etc

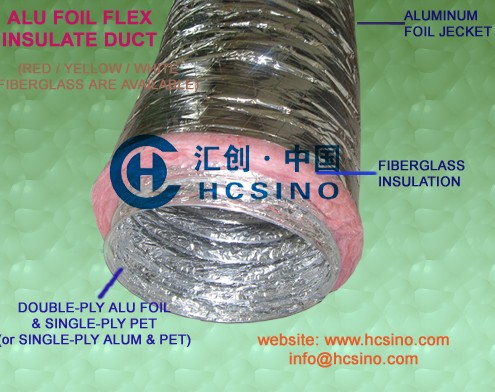

    ALMINUM INSULATED DUCT ( MODEL: ALU-IND )     (Including silent insulated duct, MODEL: ALU-INDS )

    Good insulation---heat insulated.
    (Absorb noise---can absorb the noise from the shaking when ventilated.)
    No corrosive---not corrode the alu. pipe and metal parts.
    Durability---not decay, mildew, durability.
    Fire---resistance.
    Practicality: suitable for the densely-populated area (such as school, supermarket, office, stadium, theater, factory...) high requietment of the enviroment area, such as hospital, laboratory, howff, bus, train, broadcasting studio.

    PROPERTIES VALUE
    Diameter Range 75-750mm (3"-30")
    Temperature Range -30 ~ +250ºC
    Velocity Of Air Flow (MAX.) 30 m/s
    Working Pressure 2500 Pa
    Bending Radius 0.54*D+25MM
    Thickness Of Fiberglass Insulation 25MM---50MM
    Density Of Fiberglass Insulation 16~32KG/M3
    Standard Length 10M; 5M; Available on request

    *************************************************************************************

    *************************************************************************************

    ALUM & PVC COMBINED NON-INSULATED DUCT

     ( MODEL: ALPV-NOD )

    Aluminum & PVC combined flexible air ducts are specifically produced for discharging welding fumes and dense chemical gases where high mechanical resistance is required.

    This product is produced from multi layer aluminium strengthened with high tension steel spring wire, covered with a nonflammable PVC jacket.

    Aluminium & PVC combined flexible air ducts are also recommended for heating, cooling and air-conditioning systems.

     An important aspect of ALPV-NOD is its non-condensing property. And they are elastic and flexible. They can be easily fitted to circular, oval or rectangular connectors.

    Aluminium & PVC combined flexible air ducts are non-flammable.

    PROPERTIES VALUE
    Diameter Range 50-750mm (2"-30")
    Temperature Range -30~ +140ºC
    Velocity Of Air Flow (MAX.) 30 m/s
    Working Pressure 2500 Pa
    Standard Length 10M; 5M; Available on request

    ALUM & PVC COMBINED INSULATED DUCT

     ( MODEL: ALPV-IND )

    PROPERTIES VALUE
    Diameter Range 75-750mm (3"-30")
    Temperature Range -30 ~ +250ºC
    Velocity Of Air Flow (MAX.) 30 m/s
    Working Pressure 2500 Pa
    Bending Radius 0.54*D+25MM
    Thickness Of Fiberglass Insulation 25MM
    Density Of Fiberglass Insulation 16~32KG/M3
    Standard Length 10M,5M etc

    *************************************************************************************

    *************************************************************************************

     CLOTH BASE PVC FLEXIBLE DUCT

     ( MODEL: CBPV-NOD )

    Manufactured from hardwearing PVC canvas strip reinforced with high tension steel spring wire. They are Self-holding during usage and low wind resistance, and specifically produced for low and medium pressure heating, cooling, ventilation, air conditioning, exhaust and dust extraction systems.

     Cloth based pvc flexible duct are highly resilient and can be used in applications with excessive vibration and/or perpetual motion systems. They are airtight, highly elastic and flexible. They can be easily fitted to circular , oval or rectangular connectors. Cloth based pvc flexible ductare non-flammable.

    PROPERTIES VALUE
    Diameter Range 75-300mm (3"-12")
    Temperature Range -30 ~ +200ºC
    Velocity Of Air Flow (MAX.) 30 m/s
    Working Pressure 2500 Pa
    Color Black, grey
    Standard Length 10M etc

    PURE PVC FLEXIBLE DUCT

     ( MODEL: PPV-NOD )

    PROPERTIES VALUE
    Diameter Range 75-203mm (3"-8")
    Temperature Range -30 ~ +140ºC
    Velocity Of Air Flow (MAX.) 30 m/s
    Working Pressure 2500 Pa
    Color Black, grey, white
    Standard Length 10M etc

    NOTE: OTHER SIZES AND LENGHT ETC ARE AVAILABLE ON REQUEST.
