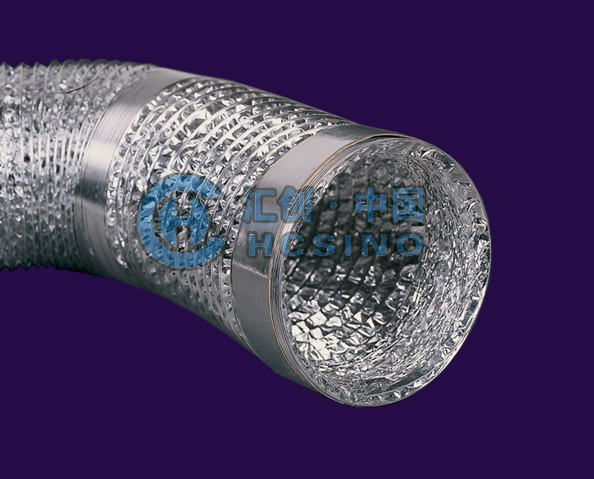

ALUMINUM NON-INSULATED DUCT ( MODEL: ALU-NOD )
Non-insulated aluminium flexible ducts are specifically produced for low and medium pressure heating, cooling, ventilation, exhaust and air conditioning systems.
Airtight aluminium flexible ducts are produced from multi layer aluminium strengthened with high tension hard steel spring wire. It has high elasticity and flexibility.
It can be easily fitted to circular, oval or rectangular connectors. In case of fire no toxic or poisonous gases are released
PROPERTIES | VALUE |
Diameter Range | 50-750mm (2"-30") |
Temperature Range | -30 ~ +250 ºC |
Velocity Of Air Flow (Max.) | 30 m/s |
Working Pressure | 2500 Pa |
Bending Radius | 0.54*D |
Standard Length | 10M, 5M etc |
