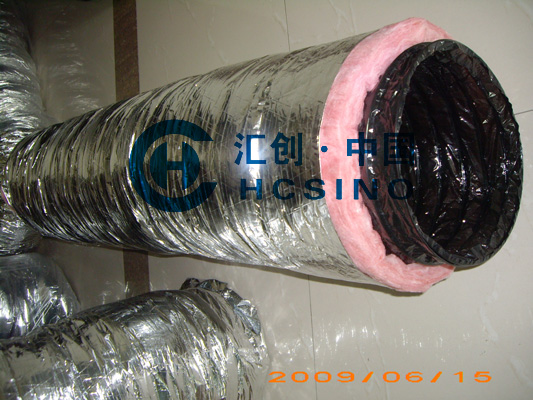

  • Aluminum & Black PET Composite Insulated Duct---Model¡¾ALPE-IND¡¿

  • Aluminum & PET combined flexible air ducts are specifically produced for discharging welding fumes and dense chemical gases where high mechanical resistance is required.

    This product is produced from multi layer aluminium strengthened with high tension steel spring wire, covered with a nonflammable PET jacket.

    Aluminium & PET combined flexible air ducts are also recommended for heating, cooling and air-conditioning systems.

     An important aspect of ALPE-NOD is its non-condensing property. And they are elastic and flexible. They can be easily fitted to circular, oval or rectangular connectors.

    Aluminium & PET combined flexible air ducts are non-flammable.



    ALUM & Black PET COMBINED INSULATED DUCT   ( MODEL: ALPE-IND )

    PROPERTIES VALUE
    Diameter Range 75-750mm (3"-30")
    Temperature Range -30 ~ +250ºC
    Velocity Of Air Flow (MAX.) 30 m/s
    Working Pressure 2500 Pa
    Bending Radius 0.54*D+25MM
    Thickness Of Fiberglass Insulation 25MM
    Density Of Fiberglass Insulation 16~32KG/M3
    Standard Length 10M,5M etc

    NOTE: OTHER SIZES AND LENGHT ETC ARE AVAILABLE ON REQUEST.
