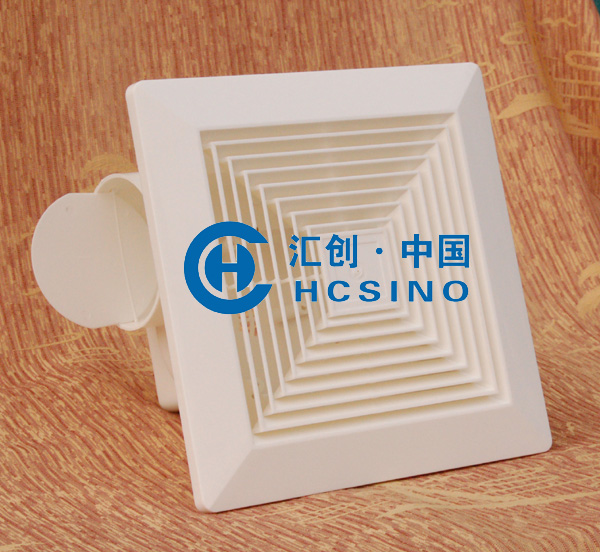

  • Pipeline Exhaust Fan HC12-1
    • Product model: 12-1
    • Product explanation:
    • Products
      Pipeline exhaust fan






      Specification
      Voltage
      120V~  220V~  240V~
      Frequency
      50HZ    60HZ
      Power
      30W
      Ventilation capacity
      0.072(m3/s)
      Noise
      ≤ 40db
      Area
      Front panel size
      248*248
      Air inlet
      100
      Installation size
      210*210
      Piece/set
      8
      Net weight/set
      1.6kg
      Gross weight/piece

      Size of internal box
      260*205*260
      Size of external box
      530*400*530
      INtroduction
      to products

       Made of ABS (Two types: One type is made of ABS, The other type is made of PP) engineering plastic which is antistatic and ageing resistant. It can keep away distortion for a long time. The abrasion proof plate imported from Japan can run for continuous 2200 hours without abrasion. The oiled copper bearing based on the technology of high-density powder metallurgy can run much stably and noiselessly. The complex built-in electronic temperature controller can guarantee much safer operation.
