Centrifugal glass wool is a silk-like material made by fiberization of melted glass and then coating with thermosetting resin through centrifugal blowing process. By means of thermal setting, this material can be further processed into series of products for multiple purposes.
It has excellent thermal insurance performance at both high and low temperature environment. It is mainly used for the separating wall in the high-grade building, ceiling, air conduit or inner wall of bellows for thermal insurance, or machine shops for noise absorption,or metal ceiling for control of moisture.
*Glass wool blanket / rolls | |
SPECIFICATION | |
FACING MATERIAL | ALUM.FOIL |
LENGTH | 10000-30000mm |
WIDTH | 1200mm ( 600mm and 400mm is available) |
THINKNESS | 25-200mm |
DENSITY | 10,16,20,32,40,48kg/m3 (10-50kg/m3) |
MAX TEMPERATURE | 400~600C |
SPECIAL SPECIFICATION PRODUCTS CAN BE MADE ON REQUEST | ¡¡ |

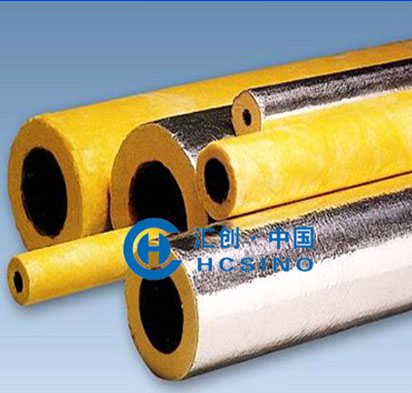

*Glass wool pipe | |
SPECIFICATION | |
DESCRIPTION | GLASS WOOL PIPE |
DENSITY | (48-80)kg/m3 |
THICKNESS | (25-90)mm |
DIAMETER | (18-529)mm(3/4 inch to 21 inch) |
LENGTH | 1000mm,1200mm |
FACING MATERIAL | ALUM.FOIL |
PACKAGING | |
1) NORMAL STANDARD PE+PP | |
2) HEAT CONTRACTION SEALED PE+PP+PE | |
3) COLOR BAG PE+(PP+PE) | |
4) CUSTOMIZING | |
TECHNICAL PARAMETERS | |
CERTIFICATION | CE |
AVERAGE FIBER DIA. | ≤5 µm |
MOISTURE CONTENT | 0.2% Max |
CONDUCTIVITY COEFFICIENT | (0.035-0.040)w/m.k |
HYDROPHOBICITY | ≥99% |
SLAG INCLUSION | <0.3% |
HEAT RESISTANCE COEFFICIENT | (1.16-2.56)m2.k/m |
SOUND INSULATION COEFFICIENT | 500HZ 1.13-1.23 |
1000HZ 1.08-1.05 | |
2000HZ 1.04-1.00 | |
NON INFLAMMABLE | GRADE A |
FIRE RETARDANT | YES |
NON CORROSIVE | YES |
VERMIN PROOF |
YES |
