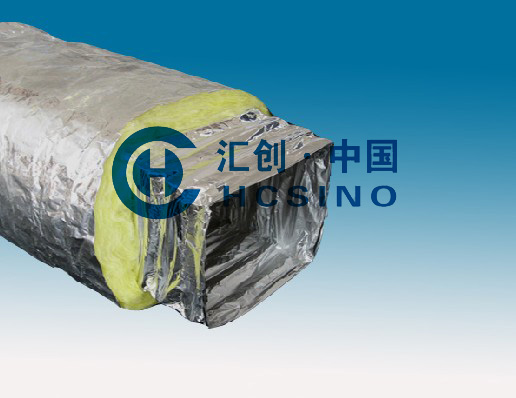

Flexible duct covered by fiberglass insulation and aluminum/polyester
laminate jacket.
Have good fire resistance and pressure resistance along with good
thermal insulation and elasticity.
Used in high-pressure, medium-pressure and low-pressure central air
conditioning and ventilation system.
PROPERTIES | VALUE |
Diameter Range | 75-750mm (3"-30") |
Temperature Range | -30 ~ +250ºC |
Velocity Of Air Flow (MAX.) | 30 m/s |
Working Pressure | 2500 Pa |
Bending Radius | 0.54*D+25MM |
Thickness Of Fiberglass Insulation | 25MM---50MM |
Density Of Fiberglass Insulation | 16~32KG/M3 |
Standard Length | 10M; 5M; Available on request |
